DTC Products' Slug Retention Machine (patented) uses a pneumatically-powered grinder to precisely machine a small angled groove into the sidewall of the die cavity in a stamping die. A micrometer coupled to the drive of the machine’s slide enables precise movement of the machine’s carriage to enable the depth of the slug retention groove to be precisely controlled.

  • Slug Retention Machine - $5900 US

    Slug Retention Machine - $5900 US

    USA Purchase Only

  • Slug Retention Machine - $6900 US

    Slug Retention Machine - $6900 US

    USA Purchase Only

  • 1

The groove is machined in at a precise depth and at a calculated angle to the die surface, which creates a precise amount of interference. During the stamping operation, slugs (scrap) expand into these precision grooves, which prevents them from pulling back up to the top of the die block and onto the die surface where they can cause damage to the strip, final part or even to the die. This solution helps reduce downtime by eliminating the need to stop the press and remove slugs (scrap) off the die and stripper surface, and also eliminates the significant costs associated with sorting parts looking for slug marks, or costly damage to your die. The retention grooves can be machined into the die openings while the die is still in the press, resulting in even greater savings by eliminating the need to remove the die from the press, disassemble and re-assembling it and then return it to the press.

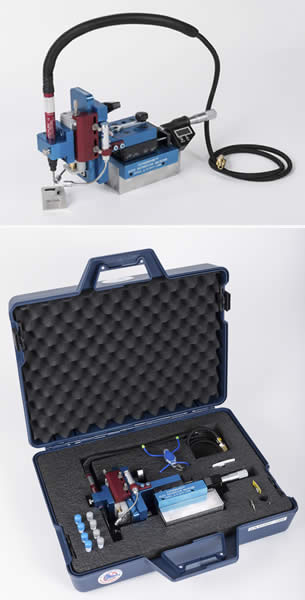

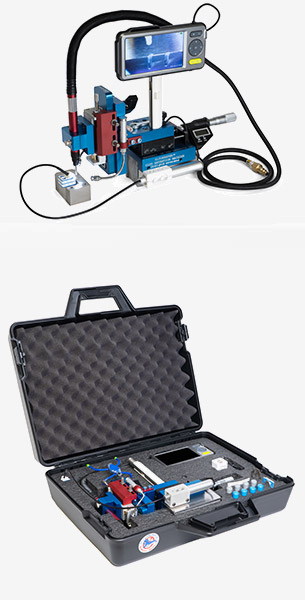

The Slug Retention Machine measures less than 8 inches high, and features a magnetic base that allows it to be mounted temporarily but firmly in place on the die surface during the grooving operation. The machine can also be used to put grooves into die bushings and die inserts, as well as to vent guided stripper openings. At less than 15 pounds, this lightweight unit is easily transportable within a sturdy carrying case. The Slug Retention Machine can be used on dies in the tool room as well as on a die while it is in the press, requires only a compressed air connection to operate, and comes with multiple bits and accompanying tools . It can easily be set up and operated by a single person.
